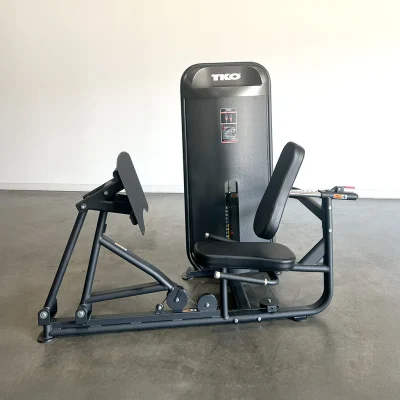

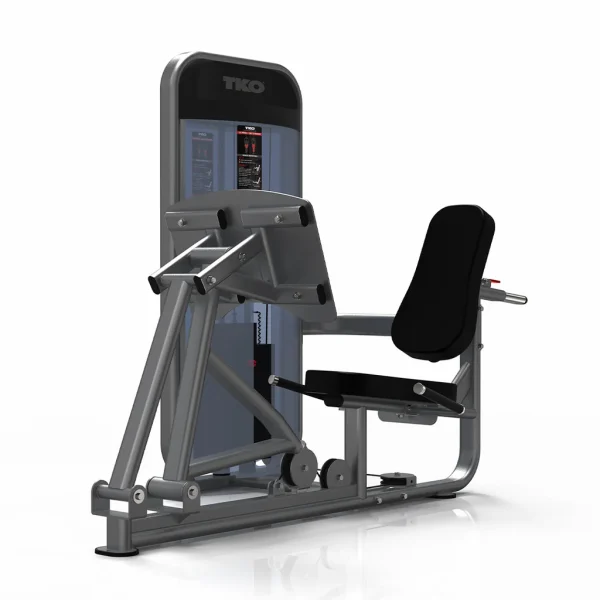

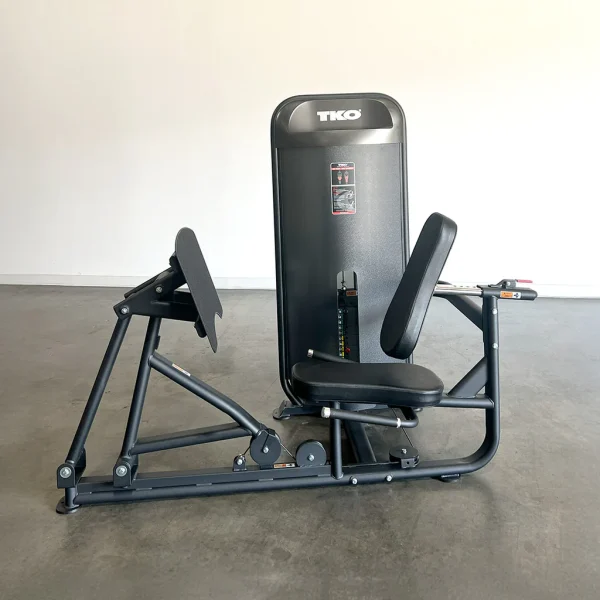

The TKO Leg Press / Calf Raise 8805 combines leg press and calf raise in one Achieve Dual Series station — targeting quads, hamstrings, glutes, hips, and calves without switching machines. A 250 lb weight stack, 6-position back pad, wide non-slip foot plate with a dedicated calf zone, step-through design, and aircraft-spec LOOS cables deliver a complete lower body selectorized solution in a compact, commercial-grade footprint.
Function 2-In-1 | Weight Stack 250 lb | Back Pad 6 Positions | Access Step-Through | Cables Aircraft-Spec |
The 8805 covers the two primary lower body pressing movements in a single station — leg press for quads, hamstrings, glutes, and hips, followed immediately by calf raise without moving to a different machine. Switching between exercises requires only repositioning the feet on the dedicated calf zone of the foot plate, making the transition seamless and keeping leg day workouts efficient.
The wide, non-slip foot plate provides generous surface area for varied foot positioning during leg press — narrow stance for quad emphasis, shoulder-width for balanced leg development, or wide stance for inner thigh and glute focus. A dedicated area at the bottom of the plate provides a secure, purpose-built calf placement zone for safe and effective calf raises at any resistance level.

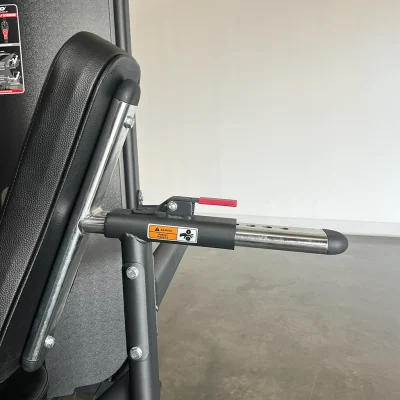

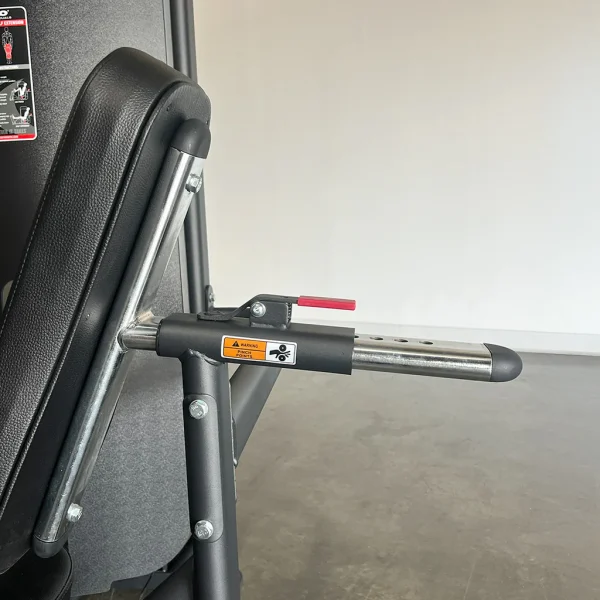

Six back pad positions accommodate users of different heights and leg lengths, ensuring proper knee angle at the start of both leg press and calf raise movements. Correct back pad positioning directly affects the safety and effectiveness of both exercises — particularly leg press, where improper starting position can place excessive strain on the lower back and knees under heavy loads.
The low-profile step-through frame allows users to walk directly into the seat from the side without climbing over the machine — making entry and exit safe and intuitive, particularly for users under heavy loading who need stable, controlled access. Easy step-through access also reduces hesitation for new users unfamiliar with leg press machines, keeping the station accessible and encouraging.
The 250 lb selectorized weight stack is the heaviest in the TKO Achieve Dual series — appropriate for leg press, which demands significantly more resistance than upper body or core machines to challenge the large muscle groups of the lower body. A fully enclosed rear shroud protects the weight stack, pulleys, and cables from user contact, maintaining safety and a clean professional appearance.
Heavy-gauge steel tubing with a graphite powder coat finish, 70mm thick foam padding with high-use upholstery, and 5mm aircraft-spec American LOOS cables rated to 2,000 lb with end fittings tested to 250,000 full-stack cycles deliver the durability the lower body demands. At 495 lb in a 76" × 45" footprint, the 8805 is solidly built for daily commercial use in hotels, apartment gyms, school weight rooms, and personal training studios.
Weight Stack 250 lb | Cables 5mm Aircraft-Spec LOOS | Exercises Leg Press + Calf Raise |
Back Pad 6 Positions | Unit Weight 495 lb | Dimensions 76" L × 45" W × 60" H |
